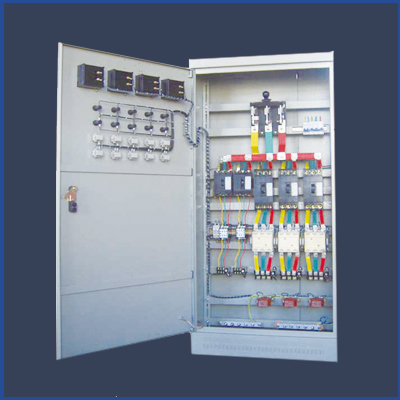

從結構上可分為兩種：固定式和抽出式。GGD是固定柜，常見的GCK、GCS、MNS是抽屜柜。那么，有些人不明白為什么抽屜柜的型號有三種或者更多，它們有什么區別嗎？今天
MNS低壓抽屜柜廠家就各種型號抽屜柜的區別做一下簡單的介紹。
From the structure can be divided into two types: fixed and extraction. GGD is a fixed cabinet, and the common GCK, GCS and MNS are drawer cabinets. Well, some people don't understand why there are three or more types of drawers. What's the difference between them? Today, MNS low-voltage drawer manufacturers make a brief introduction to the differences of various types of drawers.
一、GCK柜和GCS、MNS柜抽屜推進機構不同。
1、 The drawer pushing mechanism of GCK cabinet is different from that of GCS and MNS cabinet.
抽屜采用開門或帶門操作方式。開門操作時抽屜采用拔把式二位置、拔把式三位置操作機構和螺旋式推進機構、帶門操作時抽屜采用CXJG型操作機構。
The drawer is operated by opening or with door. When opening the door, the drawer adopts the handle type two position operating mechanism, the handle type three position operating mechanism and the screw type pushing mechanism. When operating with the door, the drawer adopts the cxjg type operating mechanism.
MNS抽屜采用的是結嵌入式：通過安裝在抽屜面板上的操作機構，在360度旋轉范圍內就能實現開關的分合、試驗、隔離、鎖定，并通過齒輪與凸輪之間的傳動實現抽屜的插拔功能。
MNS drawer adopts knot embedded: through the operating mechanism installed on the drawer panel, the switch can be turned on and off, tested, isolated and locked within the range of 360 degrees of rotation, and the drawer can be pulled in and out through the transmission between gear and cam.
二、GCS與的區別：
2、 The difference between GCS and traditional Chinese medicine is as follows
1.柜體形式不同：GCS柜只能做單面操作柜，深800。MNS柜可以做雙面操作柜，深1000。
1. Different cabinet forms: GCS cabinet can only be used as single-sided operation cabinet with a depth of 800. MNS cabinet can be used as double-sided operation cabinet with a depth of 1000.
2.原產地不同：GCS國內自主研發。MNS是從ABB公司引進的。GCS是從96年開始投放市場，很多方面都是仿照MNS，例如水平母線，進出線方式等。
2. Different places of origin: independent research and development of GCs in China. MNS was introduced from ABB. GCS has been put on the market since 1996, and many aspects are modeled after MNS, such as horizontal bus, incoming and outgoing lines, etc.
3.鋼型拼裝不同：GCS是由8MF（KS）型鋼拼裝而成，而MNS是由C（KB）型鋼拼裝的。從強度上來講GCS要優于MNS。但是從美觀度上來講，MNS要比GCS好看，很多廠家都采用C型材做GCS。GCS原始設計大電流只能做到4000A，而MNS可以達到更高，經過很多改進GCS現在達到6300A。
3. Different steel section assembly: GCS is assembled by 8MF (KS) section steel, while MNS is assembled by C (KB) section steel. In terms of strength, GCS is better than MNS. But from the aesthetic point of view, MNS is better than GCS, many manufacturers use C profile to make GCs. The original design of GCs can only achieve 4000A high current, while MNS can achieve a higher current. After many improvements, GCS now reaches 6300A.
4.抽屜機構不同：GCS采用旋轉推進機構（CJG-1~3），而MNS采用的是大聯鎖。相比之下GCS抽屜比MNS抽屜插拔更省力。
4. The drawer mechanism is different: GCS adopts rotary propulsion mechanism (cjg-1 ~ 3), while MNS adopts large interlock. In contrast, GCS drawer is more labor-saving than MNS drawer.
5.安裝模數不同：MNS柜安裝模數是25mm而GCS是20mm，GCS多可以做11層抽屜，MNS可以做9層X2面。所以GCS多22個抽屜，而MNS多72個抽屜。MNS在小電流方面有優勢，而GCS在大電流方面有優勢。
5. Different installation module: the installation module of MNS cabinet is 25 mm, while that of GCs is 20 mm. GCs can be used as 11 layers drawer at most, and MNS can be used as 9 layers x2. So GCS has up to 22 drawers and MNS has up to 72 drawers. MNS has advantages in small current, while GCS has advantages in large current.
Through the above explanation, you should roughly understand the difference between GCS, GSK and MNS. We can make comparison and selection according to the different characteristics and uses of the project when purchasing. I hope the above contents will be helpful to you. For more information, please click: MNS low voltage drawer manufacturer http://www.baidu-guiyang.com .
